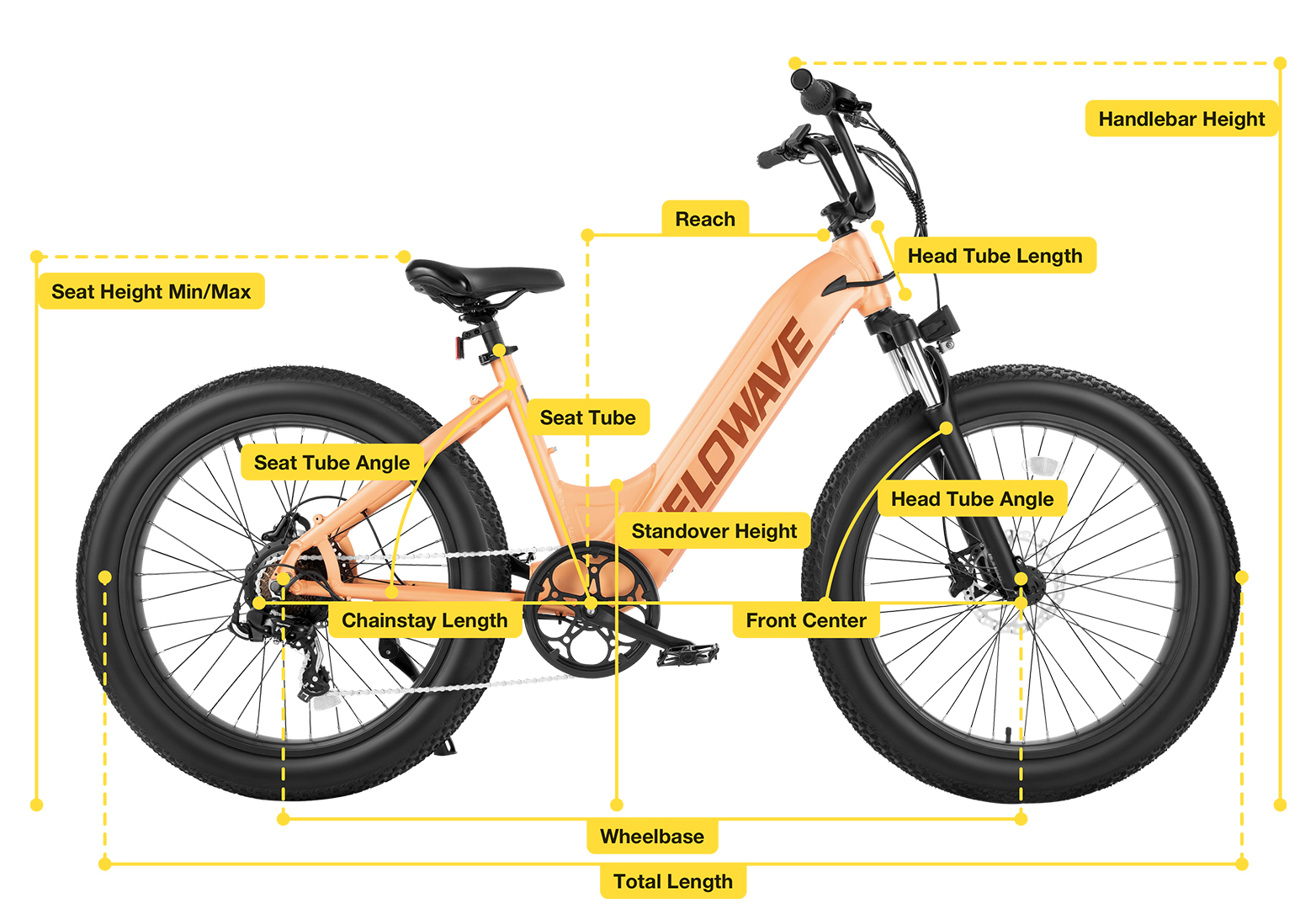

| Total Length | 1976mm |
| Head Tube Length | 135mm |
| Head Tube Angle | 69° |
| Seat Tube | 439mm |
| Seat Tube Angle | 70° |
| Handlebar Height | 1203mm |
| Bottom Bracket Height | 375mm |
| Chainstay Length | 508mm |
| Front-Center | 718mm |
| Wheelbase | 1226mm |
| Standover Height | 780mm |
| Reach | 400mm |
General
- Classes: Class 3(Ebikes can go up to 28mph with pedal assistance)
- Max Speed: 28MPH by pedal, 20MPH by throttle
- Range: 50+ Mile by Pedal; 30+ Mile by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
Frameset
- Frame: 6061 Aluminium, Removable Battery, Internal Routing
- Fork: Hydralic Suspension Fork
Wheels
- Rim Material: Aluminum
- Rim Size: 26 x 3.0
- Front Wheel Spokes: 13K x 243
- Rear Wheel Spokes: 12K x 198
- Tire: Kenda Fat Tires
- Tire Size: 26" x 4.0"
E-system
- Battery: 48V 15Ah, 720Wh, LG 21700 Cells
- Charger: Input 100-240V~, 2.8A(Max.), 50-60Hz. Output 54.6V⎓2.0A, Aviation Connector. UL LISTED
- Motor: BAFANG Geared Hub Motor, Rated 750W, Peak 1275W, Max Torque 80NM
- Controller: 48V 25A Peak
- Display: Multifunctional Color-Screen Display
- Pedal Assist: Cadence Sensor
- Throttle: Thumb Throttle
- Front Light: 48V 10W LED Light
Drivetrain
- Shifter: Shimano, 7-Speed
- Rear Derailleur: Shimano, Long Cage
- Crank & Chainring: 52T, 170mm Alloy Crank
- Freewheel: 7-Speed
- Pedal: Alloy Platform Pedals
Components
- Saddle: Comfortable Wide Saddle
- Handlebar: Alloy, 750mm width
- Grips: Nylon Lock-on
- Brake: Front & Rear Hydralic Disc Brakes
- Brake rotor: 180mm, 1.9mm thick
- Kickstand: Side Kickstand
- Seatpost: Forged Alloy, ∅31.6*350mm
- Stem: Bar bore: ∅31.8mm, Clamp I.D.: ∅28.6mm, HEIGHT:40mm, RISE:0°
Weight
- Net Weight: 32kg(70.5lb)
- Gross Weight: 42kg(92.6lb)
- Battery Weight: 4.2kg(9.3lb)
- Weight limit: 150kg (330lb) Payload Capacity
Size
- Product Size: 1975x1205x750mm
- Packing Size: 1630x350x830mm
